Generating Excel Report in ASP.NET 2.0

Introduction

Excel is such a powerful tool that almost all companies make extensive use of it for analyzing data. Moreover, the internet is not as it was 10 years ago. Almost all pages that are out there on the internet are dynamic ones, that is, interacts with a database in backend to produce results. Sometimes, data that are displayed, if made available on in an Excel file, proper analysis of the data often helps in making more accurate decisions by using Excel features. In this tutorial, we will learn how to interact with Excel files, both reading and writing.

Excel - ASP.NET Scenarios

For the purpose of this tutorial, an Excel sheet had been prepared that holds record of students and their respective marks in subjects. Please note that these records are fictitious and had been input randomly.
StudentId
StudentName
10001
John Thomas
10002
Terry Lane
10003
Anne Marie
10004
Tom Sawyer
10005
Derek Ince
10006
Emerson Boyce
10007
Thommas Kolka
10008
Edison Hall
10009
Teddy Harewood
10010
Williams Yorkshire
Fig 1. Table holding information for students
StudentId
Marks
10001
50
10002
60
10003
75
10004
80
10005
90
10006
95
10007
100
10008
20
10009
48
10010
66
Fig 2. Table holding student marks in Mathematics subject
StudentId
Marks
10001
30
10002
25
10003
65
10004
78
10005
95
10006
64
10007
32
10008
88
10009
95
10010
99
Fig 3. Table holding student marks in Geography subject

Interacting with Excel

Fortunately, there are COM objects that are available to interact with the Excel file. Also, we can make use of the OleDB class to treat the Excel file as a simple table. In this way, we can fire SQL queries to the Excel file so that we can retrieve data from the sheets. An analogy can be made to a database. The Excel Workbook is considered as the Database while the Sheets are considered as tables. Microsoft Excel 11.0 Object Library should be added as Reference to get the features for interacting with Excel.

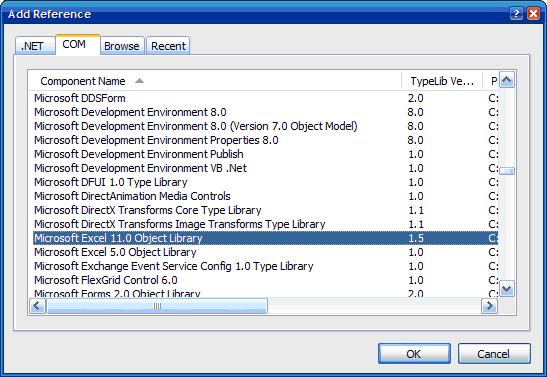

Fig 4. Adding Microsoft Excel 11.0 Object Library as Reference
The Excel file is then added to the DataSource folder in ASAP.NET to be interacted with. To connect to a certain database, a connection string is needed. The same thing applies for Excel. The following is a key added in the Web.Config file for future reference.
<add name="ExcelConnection" connectionString="Provider=Microsoft.Jet.Oledb.4.0;Data Source=|DataDirectory|\SchoolMgt.xls;Extended Properties=Excel 8.0"/>
Note that our Excel file which contains the necessary data will be SchoolMgt.xls, as written in the connection string.

Fig 5. Excel file illustrating Excel Book containing data sheets with data

Reading data from Excel sheets

Let us build an interface for getting data from the Excel file.



Fig 6. Interface to search records per table selected.
It is important to import the following:
Imports System.Data.OleDb
Imports System.Data
The following code creates the connection and builds the query based on the selected table.
Protected Sub btnSearch_Click(ByVal sender As Object, ByVal e As System.EventArgs) Handles btnSearch.Click
Try
            Dim strExcelConn As String = System.Configuration.ConfigurationManager.ConnectionStrings.Item("ExcelConnection").ToString()
            Dim dbConn As New OleDbConnection(strExcelConn)
            Dim strSQL As String

            strSQL = "SELECT * FROM [" & cmbSheets.SelectedItem.ToString() & "$]"

            dbConn.Open()

            Dim cmd As New OleDbCommand(strSQL, dbConn)
            Dim dsExcel As New DataSet
            Dim daExcel As New OleDbDataAdapter(cmd)

            daExcel.Fill(dsExcel)

            dgResults.DataSource = dsExcel
            dgResults.DataBind()
        Catch ex As Exception
            Throw ex
        End Try
End Sub
Please note that the table name in the SELECT query should be in the format [TableName$], which the square brackets and the dollar sign at the end.

Playing with SELECT statements

As you have guessed, the Excel file has turned out to be a normal database. The transparency that the OleDB connection had made is exceptional. Also, note that the first row is taken to contain field names for the columns.
Now, let us get the marks of the students in Mathematics, Geography and Total, sorted in Descending order.
Protected Sub btnGenerateReport_Click(ByVal sender As Object, ByVal e As System.EventArgs) Handles btnGenerateReport.Click
Try

Dim strExcelConn As String = System.Configuration.ConfigurationManager.ConnectionStrings.Item("ExcelConnection").ToString()
Dim dbConn As New OleDbConnection(strExcelConn)
Dim strSQL As String

strSQL = "SELECT S.StudentId, S.StudentName, M.Marks, G.Marks, (M.Marks+G.Marks) AS Total "& _
                     "FROM [Students$] S, [Mathematics$] M, [Geography$] G "& _
                     "WHERE(S.StudentId = M.StudentId And S.StudentId = G.StudentId) " & _
                     "ORDER BY (M.Marks+G.Marks) DESC"
dbConn.Open()

Dim cmd As New OleDbCommand(strSQL, dbConn)
Dim dsExcel As New DataSet
Dim daExcel As New OleDbDataAdapter(cmd)

daExcel.Fill(dsExcel)

dgReports.DataSource = dsExcel
dgReports.DataBind()

Catch ex As Exception
Throw ex
End Try
End Sub

Fig 7. Report generating the students' marks and total, sorted in descending order.

Generating Excel Reports

Two ways for generating Excel report will be discussed in this tutorial. The first one is using the "Response" class and the second one by manipulating the Excel objects that "Microsoft Excel 11.0" Objects provide.
The following piece of code illustrates how this is done
    Protected Sub btnToExcelByResponse_Click(ByVal sender As Object, ByVal e As System.EventArgs) Handles btnToExcelByResponse.Click
        '   Variables declaration
        Dim dsExport As New DataSet()
        Dim tw As New System.IO.StringWriter()
        Dim hw As New System.Web.UI.HtmlTextWriter(tw)
        Dim dgGrid As New DataGrid()

        dgGrid.DataSource = getData()

        '   Report Header
        hw.WriteLine(" Student Marking Report ")

        '   Get the HTML for the control.
        dgGrid.HeaderStyle.Font.Bold = True
        dgGrid.DataBind()
        dgGrid.RenderControl(hw)

        '   Write the HTML back to the browser.
        Response.ContentType = "application/vnd.ms-excel"
        Me.EnableViewState = False
        Response.Write(tw.ToString())
        Response.End()
    End Sub
  • First, we create the dataset that will hold the records. Then, a StringWriter object (tw) is also created along with an HtmlTextWriter (hw) which takes as parameter the text writer object. They are important for rendering purposes; i.e. html tags can be applied like bold, italic etc. to the resulting Excel report.
  • Also, a datagrid object which will store the dataset of records.
  • Note that function getData() in the code snippet only contains the codes in the previous example which returns a dataset of records.
  • hw.WriteLine(" Student Marking Report ") shows that you can also combine HTML codes with the output for proper display. In our example, the font size will be 5, underlined and bold.
  • dgGrid.RenderControl(hw) renders the HTML object with the data that the datagrid contains. The result is normally formatted in a tabular format.
  • Response.ContentType = "application/vnd.ms-excel" makes the Reponse object output to Excel.
  • Response.Write(tw.ToString()) outputs the formatted object to Excel.

Figure 8. Output result showing the report that is generated in Excel
The second way for generating Excel reports from ASP.NET is to use the Microsoft Excel 11.0 Objects. This method offers more fallibility in terms of manipulating the features that Excel provides and formatting the report.
The following code snippet makes use of the various Excel objects that Excel provides to generate the report.
Imports System.Reflection
Imports Excel = Microsoft.Office.Interop.Excel

    Protected Sub btnToExcelByObjects_Click(ByVal sender As Object, ByVal e As System.EventArgs) Handles btnToExcelByObjects.Click
        Try
            Dim xlWorkBook As Excel.Workbook
            Dim xlWorkSheet As Excel.Worksheet

            xlWorkBook = New Excel.Application().Workbooks.Add(Missing.Value)
            xlWorkBook.Application.Visible = True
            xlWorkSheet = xlWorkBook.ActiveSheet

            '   Gets the dataset containing the data
            Dim dsData As DataSet = getData()
            Dim i As Integer = 2

            '   Outputting the fieldnames in pink bold color
            xlWorkSheet.Cells(1, 1) = "Student ID"
            xlWorkSheet.Cells(1, 2) = "Student Name"
            xlWorkSheet.Cells(1, 3) = "Mathematics"
            xlWorkSheet.Cells(1, 4) = "Geography"
            xlWorkSheet.Cells(1, 5) = "Total"

            xlWorkSheet.Range("$A1:$E1").Font.ColorIndex = Excel.Constants.xlColor1
            xlWorkSheet.Range("$A1:$E1").Font.Bold = True

            '   Outputting the data
            For Each dr As DataRow In dsData.Tables(0).Rows
                xlWorkSheet.Cells(i, 1) = dr(0)
                xlWorkSheet.Cells(i, 2) = dr(1)
                xlWorkSheet.Cells(i, 3) = dr(2)
                xlWorkSheet.Cells(i, 4) = dr(3)

                '   Building the formula for calculating the sum
                xlWorkSheet.Cells(i, 5).Formula = "=SUM($C{0}:$D{0})".Replace("{0}", i.ToString())

                '   Going to the next row
                i = i + 1
            Next

            '   Auto fit the columns
            xlWorkSheet.Columns.AutoFit()

            '   Generating the graph
            Dim chart As Excel.Chart
            chart = xlWorkBook.Charts.Add()

            With chart
                .ChartType = Excel.XlChartType.xlColumnClustered
                .SetSourceData(xlWorkSheet.Range("A1:E11"), 2)

                .HasTitle = True
                .ChartTitle.Characters.Text = "Students' marks"

                .Axes(1, Excel.XlAxisGroup.xlPrimary).HasTitle = True
                .Axes(1, Excel.XlAxisGroup.xlPrimary).AxisTitle.Characters.Text = "Students"
                .Axes(2, Excel.XlAxisGroup.xlPrimary).HasTitle = True
                .Axes(2, Excel.XlAxisGroup.xlPrimary).AxisTitle.Characters.Text = "Marks"
            End With
        Catch ex As Exception
            Throw ex
        End Try
    End Sub
An Excel workbook is first created. Then the active sheet is accessed by xlWorkSheet = xlWorkBook.ActiveSheet. After that, we get the data into the dataset, ready to be processed. Using the Font property, the title is displayed in Pink bold colour. Note how the Formula that Excel provides is properly used to calculate the SUM of the marks for each student xlWorkSheet.Cells(i, 5).Formula = "=SUM($C{0}:$D{0})".Replace("{0}", i.ToString()).

Figure 9. Excel Report having output the list of students and their respective marks.
A chart is also generated using the objects. The x-axis consists of the names and id of each student. The y-axis, the marks for the different students. The chart is always handy for analysis of data.

Figure 10. Chart that is generated using Microsoft Excel 11.0 Objects

Summary

In this tutorial, you learned how to read data from Excel, generate report using the Response objects and to play with the Microsoft Excel 11.0 objects provided. Indeed, it is impossible to cover all features in this tutorial but many important techniques were covered to help you down the line. It is up to you to be creative and adapt the techniques to your scenarios.

Going professional with NativeExcel for .NET

Excel is powerful tool, but in real world development you rarely have Microsoft Office installed on your web server. There is no Excel on shared hosting and obtaining Office license for dedicated server is possible, but also pretty expensive. Fortunately, there is pure .NET component named Native Excel for .NET that creates or modifies Excel documents on the fly. For just $120 for single license you can use it on unlimited number of web sites and servers (source code available too). It is easier to distribute application since you work with simple assembly written in C#, instead of COM Excel object. Best of all, you don't need to learn anything new because objects and properties are identical to Excel's, so if you understood this tutorial you are already expert for NativeExcel too :).
